Red side 0805 SMD LED chip



Size: 2.0*1.25*0.8mm

Wavelength: 635-645nm

Brightness: 50-80mcd

Welding temperature: 260 degrees

Welding time: 3 seconds


Luminous color: red light

Forward current: 30mA

Reverse voltage: 5V

Forward voltage: 1.8-2.4V


  SMD Light Emitting Diode (LED) :0402 0603 0602 0802 0805 1204 1206 1208 1210 3528 5050, etc. Red/Blue/Yellow/Green/Emerald/Orange/White/Red/Green/Red/Blue/Yellow/Green/Orange/Blue/Red Green and blue colorful and other full series


  In-line light emitting diode (LED) F1.8 F2 F3 F5 F8 F10 F12 2*3*4 2*5*7 Piranha/bullet, etc. Full range of red/blue/yellow/green/emerald green/orange/white/red and green Full range of two-color/red-blue-two-color/yellow-green-two-color/orange-blue two-color/red-green-blue colorful etc.

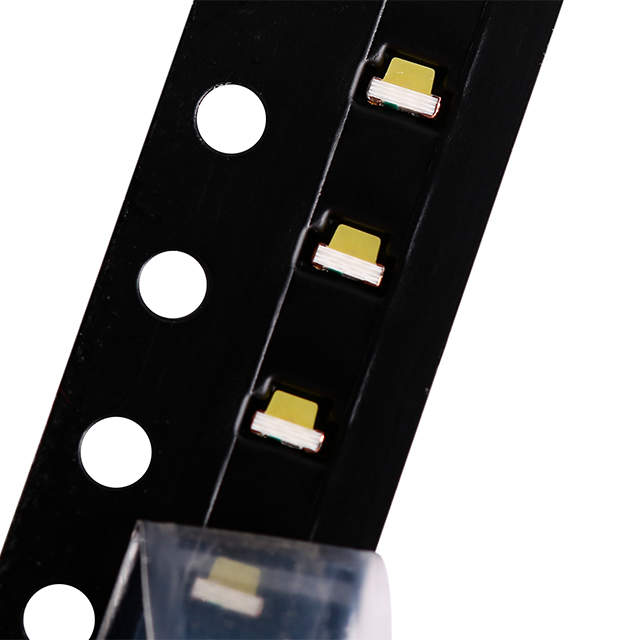

 Our products: Reel: 0603 package 4K package 0805 and 1206 each 3K package 335 package 3k package


Product parameters:


Red light wavelength: 620nm-630nm Voltage: 1.8v-2.2v Brightness: 100mcd-180mcd (specific parameters are within this range)

Blue light wavelength: 460-470nm voltage: 2.6-3.2v brightness: 120-220mcd

Emerald wavelength: 515-524nm Voltage: 2.6-3.2v Brightness: 500-650mcd

Yellow wavelength: 587-591nm Voltage: 1.8-2.2v Brightness: 100-180mcd

Yellow-green wavelength: 568-574nm Voltage: 1.8-2.2v Brightness: 24-92nm

Orange wavelength: 600-609nm Voltage: 1.8-2.2v Brightness: 120-220nm

White light color temperature: According to X, Y value to determine the color temperature, voltage: 2.6-3.2v brightness: 350-1050mcd

Pink temperature: Determine the color temperature according to X and Y values, voltage: 2.6-3.2v, brightness: 350-600mcd

Purple light conventional wavelength: 400-425nm voltage: 3.0-3.4v brightness: 10-20mcd
