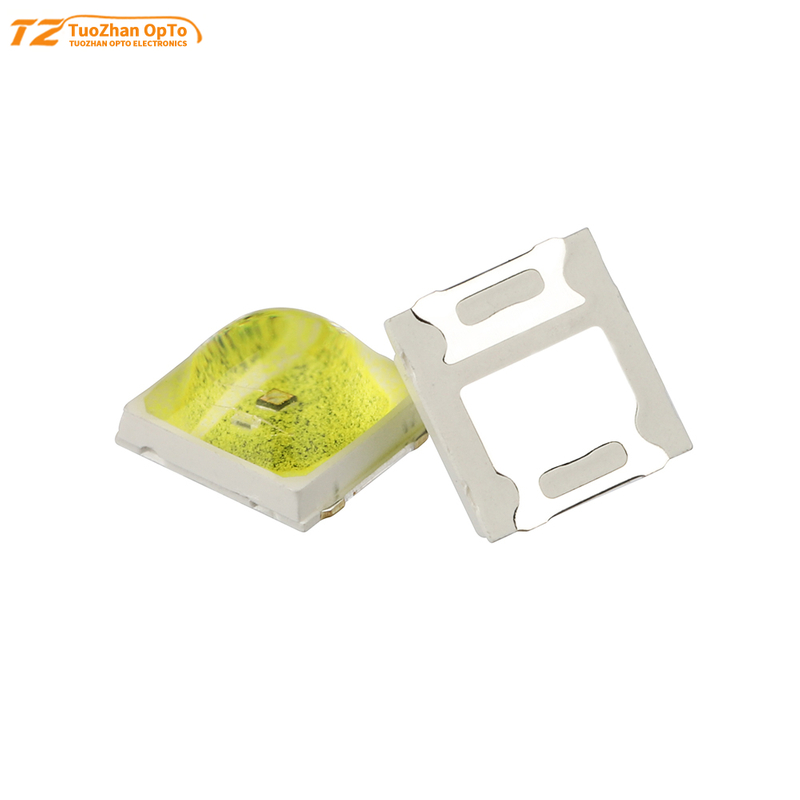

TZ5054UVA365+395AP-002
TUOZHAN
5.0 x 5.4 mm
1.00 mm
Advantages & Benefits
365nm+395nm dual peak wavelength
High luminous intensity and high efficiency
Compatible with reflow soldering process
Low thermal resistance
Long operation life
Wide viewing angle at 120°
Silicone encapsulation
Environmental friendly, RoHS compliance
Applications
Nail lamp
Mosquito lamp
The sterilization lamp
| P/N | Rated voltage (V) | Rated current (mA) | peak wavelength (nm) | Radiant Flux (mW) | Viewing Angle 2θ1/2 | ||||
| Min. | Typ. | Max. | Typ. | Max. | Typ. | Min. | Typ. | Typ. | |
| TZ5054UVA365+395AP-002 | 3.4 | 3.6 | 3.8 | 200 | 365-375nm 390-400nm | 350 | 120° | ||
Advantages & Benefits
365nm+395nm dual peak wavelength
High luminous intensity and high efficiency
Compatible with reflow soldering process
Low thermal resistance
Long operation life
Wide viewing angle at 120°
Silicone encapsulation
Environmental friendly, RoHS compliance
Applications
Nail lamp
Mosquito lamp
The sterilization lamp
| P/N | Rated voltage (V) | Rated current (mA) | peak wavelength (nm) | Radiant Flux (mW) | Viewing Angle 2θ1/2 | ||||
| Min. | Typ. | Max. | Typ. | Max. | Typ. | Min. | Typ. | Typ. | |
| TZ5054UVA365+395AP-002 | 3.4 | 3.6 | 3.8 | 200 | 365-375nm 390-400nm | 350 | 120° | ||
