3535 5MW UVC

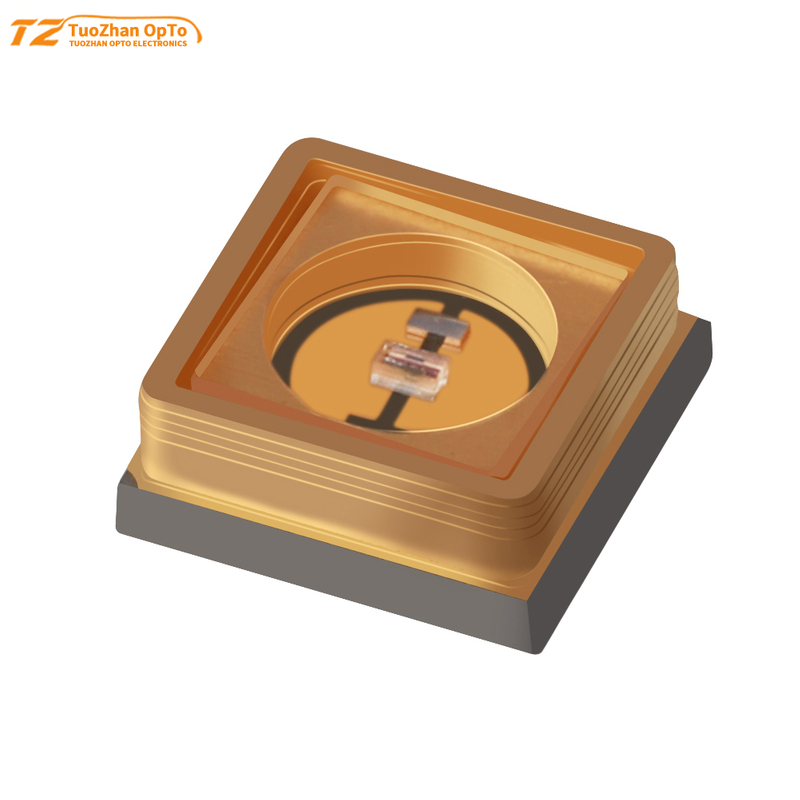

UVC Germicidal SMD LED 3535 Radiant Power 5mW UVC LED Diode
Availability:
Quantity:
  • TZ35UVC02-018

  • TUOZHAN

  • 3.5 x 3.5 mm

  • 1.50 mm

Advantages & Benefits

  • 270nm-280nm wavelength

  • Compatible with reflow soldering process

  • Low thermal resistance

  • Wide viewing angle at 120°

  • Superior ESD protection

  • Environmental friendly, RoHS compliance


Applications

  • Personal hygiene

  • Portable devices

  • Water disinfection

  • Surface disinfection

  • Air disinfection


P/NRated voltage
(V)
Rated current
(mA)
peak wavelength
(nm)
Radiant Flux
(mW)
Viewing Angle
2θ1/2
Min.Typ.Max.Typ.Max.Typ.Min.Typ.Typ.
TZ35UVC02-01856.5850100275510120°
