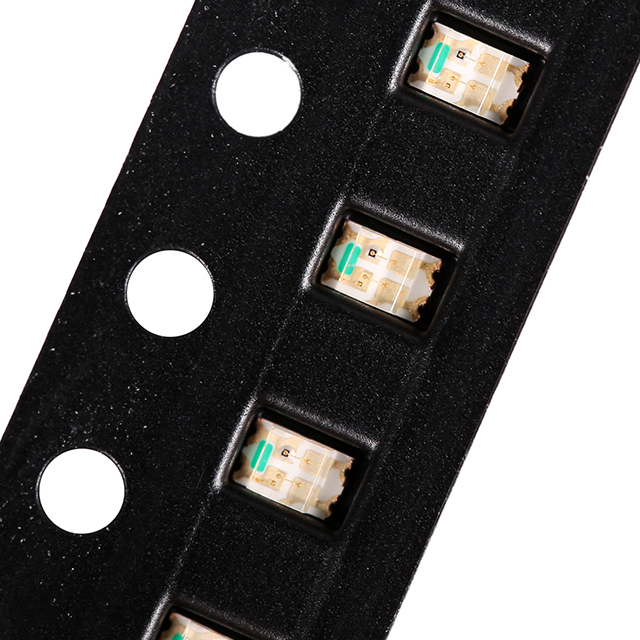

0603 Orange White Double Color SMD LED Chip

  • P4-0603OWYIA1-0.6T
  • Tuozhan
  • 1.6*0.8mm
  • 0.6mm


Product name: 0603 Orange White LED light-emitting diode

Luminous color: Double color orange and white

Dominant wavelength:

                                      orange 603-607nm

                                      white    25000-30000k

Luminous Intensity:

                                      orange 80-200mcd

                                      white    600-800mcd

Forward voltage:

                                      orange 1.8-2.4v

                                      white    2.8-3.4v

DC Forward current: 30 mA

Maximum current pulse: 100 mA

Operating temperature: -40 ~ 85 °C

Storage temperature: -40 ~ 85 °C


Same paragraph recommendation:

can be customized according to needs

Luminous colors are: red and blue/red-green/red-yellow-green/red-yellow/red-white/blue-green/RGB colorful

(If you need to order, please consult customer service)


Landscape lighting, toys, crafts, gifts, stage decorations, LED Christmas trees, traffic signal lights, community lighting, LED street lights, general signs, household appliances, LED lighting, LED emergency lights, automotive industry, LED high bay lights, LED spotlights, LED decorative lights, LED barrier tubes, LED display screens and other industries and products are widely used in advertising media, transportation, education, sports, entertainment, exhibitions, shopping malls, squares, stations and other industries and places.


(1) LED welding conditions

(1) Soldering iron welding: The tip temperature of the soldering iron (maximum 30W) should not exceed 300℃; the soldering iron must be grounded and the static electricity should not exceed the range; the soldering time should not exceed 3 seconds; the soldering position should be at least 3 mm away from the colloid.

(2) Dip soldering: the highest temperature of dip soldering is 260℃; the dip soldering time is no more than 5 seconds; the dip soldering position is at least 3 mm away from the colloid.

(2) Lead forming method

(1) The bracket must be 2mm away from the colloid.

(2) The stent forming must be done with fixtures or by professionals.

(3) The support forming must be completed before welding.

(4) When forming the bracket, ensure that the pins and spacing are consistent with the circuit board.

(3) LED installation method

(1) Pay attention to the arrangement of the outer wires of various devices to prevent incorrect polarity installation. The device should not be too close to the heating element, and the working conditions should not exceed its specified limits.

(2) Be sure not to install the LED when the pins are deformed.

(3) When deciding to install in the hole, calculate the size and tolerance of the face and the hole distance on the circuit board to avoid excessive pressure on the bracket.

(4) When installing the LED, it is recommended to use a guide sleeve for positioning.

(5) Before the soldering temperature returns to normal, the LED must be protected from any vibration or external force.

(4) Cleaning

 Special care must be taken when cleaning the colloid with chemicals, because some chemicals can damage the surface of the colloid and cause discoloration such as trichloroethylene, acetone, etc. It can be wiped and dipped in ethanol for no more than 3 minutes at room temperature.
